HTR80K-4A

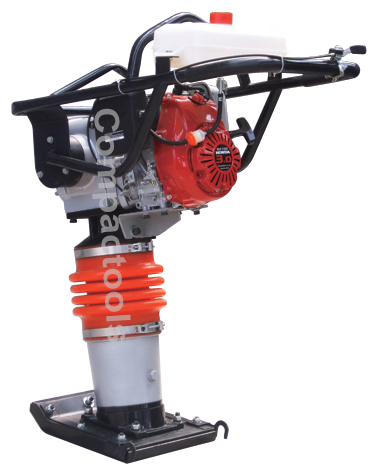

Tamping rammer HTR80K is designed for the compaction of cohesive, semi-cohesive, clay or  mixed soil in narrow confined areas. It is ideal for the compaction of backfill around foundations and forms, subgrades underneath footings and base preparation for concrete work such as slabs, curbs, gutters and pipelines . It is also perfect to general compaction of sand soil, gravel, grit and crush aggregates. Lower exhaust released, lower noise emission, fully complied with the CE directive.

Features and Benefits

● Exclusive patented product in China.

● Powered by 4-cycle, air-cool, single cylinder petrol engine, being environment friendly and no  need

   for  mixture of fuel.

● Self cleaner filtration system extends long life.

● Rust-free oil tank eliminate corrosion.

● Specially designed anti-vibration handle provides easy and comfort operation.

● Damping system of heavy duty shock mounts reduce vibration to engine and handle.

● Specially designed bellow extends better  durability and accept powerful impaction force.

● Base plate size 330mm (L) x 300mm (W) design for well balance and better tamping  efficiency.

● Reinforced steel base foot with insertion of laminated wood well absorb shock and stress.

● Impact force is adjustable with variable jumping stroke set by throttle lever.

● Transport wheel is available as option.

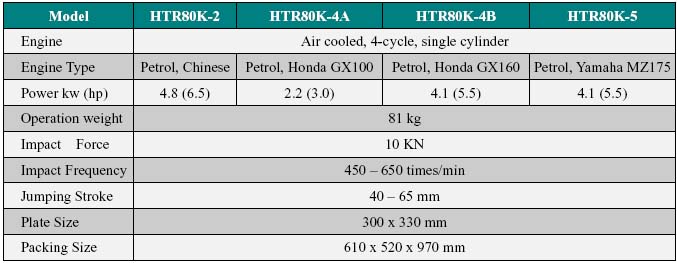

Technical Specification

The product design and technical specification is subject to improvement without prior notice.
